How to Anchor a Wooden Gazebo or Pergola to the Ground
A wooden gazebo or pergola can be a substantial permanent garden structure, so one of the most important parts of the installation is making sure it is properly anchored.
The best fixing method will largely depend on what you're building onto.
Are you installing directly onto soil or grass? Do you already have a concrete base? Are you building onto a structural timber surface? Or would you prefer a more traditional timber post base rather than a visible galvanised support?
In this guide, we'll look at three common ways to anchor a wooden gazebo or pergola:
-
Setting the timber posts into concrete
-
Using galvanised bolt-down base plates on concrete or timber
-
Using traditional timber post bases
We'll look at where each method can work and some of the important things to consider before choosing your installation method.
Why Does a Wooden Gazebo Need to Be Anchored?
A substantial timber gazebo shouldn't simply rely on its own weight to keep it in position.
The foundations and fixings form an important part of the overall installation.
As well as supporting the structure, the anchoring system may need to resist lateral movement and wind uplift, particularly with a roofed gazebo or one installed in an exposed position.
A useful principle to remember is:
Your gazebo is only as securely anchored as the surface or foundation it's fixed to.
A heavy-duty timber frame attached to an unsuitable base doesn't automatically create a secure installation.
The appropriate foundation and fixing method will depend on the size and design of the structure, the supporting surface, ground conditions and exposure of the site.
Option 1: Set the Gazebo Posts into Concrete
One of the most traditional ways of anchoring a wooden gazebo or pergola when installing directly onto soil or grass is to set the timber posts into concrete.
Rather than constructing a complete concrete slab, individual foundation holes can be excavated at each post position before the posts are positioned and secured with concrete.
When Is This Method Suitable?
Setting posts into concrete may be suitable when:
- You're installing directly onto soil or grass
- There isn't an existing structural base
- You're creating foundations specifically for the gazebo
- You want a permanent installation
- You don't want visible post supports around the bottom of the posts
One of the advantages is that suitable foundations can be created at each post location without necessarily constructing an entire concrete base beneath the gazebo.
Setting Out Your Gazebo Posts
Accurate setting out is particularly important when concreting posts into position.
Before digging, establish the finished position of every post using the dimensions of the complete gazebo or pergola.
Check the distances between posts as well as the diagonals of the overall layout to make sure everything is square.
Once the posts have been concreted into position, correcting a setting-out error becomes considerably more difficult.
Preparing the Foundations
The dimensions and depth of the foundations shouldn't simply be guessed.
The appropriate foundation will depend on factors including:
- Ground conditions
- Size and weight of the structure
- Gazebo or pergola design
- Wind exposure
- Local site conditions
For substantial structures or particularly exposed locations, appropriate professional advice should be sought when determining the foundation requirements.
You should also establish whether underground services run through the proposed foundation locations before excavating.
Positioning the Posts
The posts should be positioned accurately and temporarily supported so they remain plumb, square and correctly spaced while the concrete is placed and cures.
Measure the complete layout again before committing to the final position.
With a multi-post wooden gazebo, even a relatively small positioning error at foundation level can make installing the ring beams and roof structure considerably more difficult later.

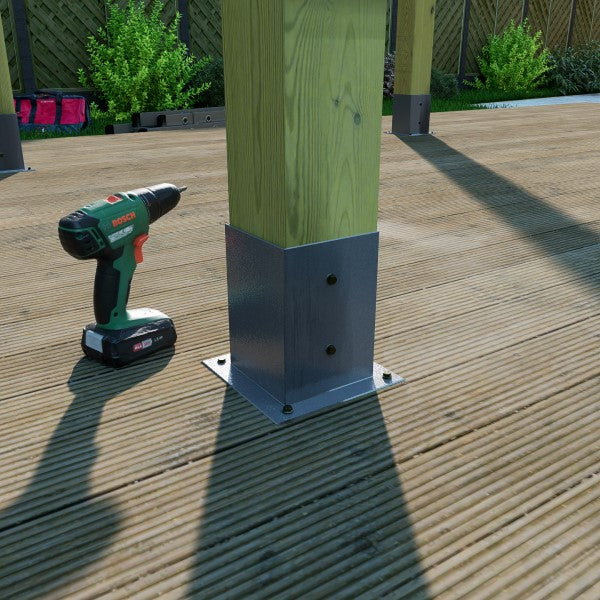

Option 2: Galvanised Bolt-Down Base Plates
If you're installing your wooden gazebo or pergola onto a suitable concrete or structural timber surface, galvanised bolt-down base plates provide a practical alternative to setting the posts into the ground.
Instead of burying the timber posts, the galvanised supports are mechanically fixed to the supporting surface and the gazebo posts are secured within them.
This allows the timber posts to sit above the installation surface while creating a mechanical connection between the post, base plate and supporting structure.
What Surfaces Can Bolt-Down Base Plates Be Fixed To?
Bolt-down post supports can be used on suitable:
- Concrete bases
- Structural timber surfaces
- Structural timber framing
The important consideration isn't simply the material visible on the surface.
The structure underneath needs to be capable of providing an appropriate fixing point for the gazebo.
For example, fixing directly into a decorative decking board is very different from fixing through the deck into an appropriately positioned structural timber member underneath.
Likewise, a thin paving slab shouldn't automatically be treated as equivalent to a structural concrete foundation.
Fixing Base Plates to Concrete
When installing onto concrete, the base plates can be mechanically anchored using suitable masonry fixings.
The concrete should be sound and appropriate for the structure being installed.
A substantial concrete base is very different from a thin screed or an individual paving slab laid over a bedding layer.
Before drilling, establish that the supporting concrete is suitable for the loads created by the gazebo.
For larger roofed gazebos or exposed locations, the foundations and fixings may need to resist uplift and lateral forces as well as supporting the weight of the structure.
Fixing Base Plates to Timber
Galvanised bolt-down base plates can also be installed onto a suitable structural timber surface using appropriate timber fixings.
The important point is ensuring that the fixings engage with structural timber capable of supporting the gazebo, rather than relying solely on decorative decking boards.
Where a gazebo is being installed onto a timber deck, the position and construction of the supporting joists, beams or other structural members should therefore be considered when determining the post locations.
This allows the loads from the gazebo to be transferred through the base plates into the supporting structure underneath.
Advantages of Galvanised Bolt-Down Base Plates
Bolt-down post supports offer several advantages:
- Suitable for appropriate concrete or timber surfaces
- No need to bury the gazebo posts
- Straightforward post positioning
- Posts can be checked for alignment before final tightening
- Galvanised steel provides corrosion protection for outdoor use
- Available with fixings appropriate for different surfaces
- Creates a neat mechanical connection at the bottom of each post
How Do You Fix Gazebo Base Plates to Concrete?
The basic installation process involves:
-
Accurately positioning the base plate
-
Marking the fixing holes
-
Drilling the concrete
-
Cleaning the drilled holes
-
Installing the appropriate masonry fixings
-
Securing the base plate
-
Positioning the timber post
-
Checking the post is plumb
-
Tightening the post within the support
We've created a separate illustrated guide showing this process in considerably more detail.
Read: How to Fix a Wooden Gazebo or Pergola to a Concrete Deck
Timbakit 150 × 150mm Galvanised Bolt-Down Base Plates
Timbakit galvanised bolt-down base plates are designed to suit our substantial 150 × 150mm gazebo posts.
They're available with a choice of timber fixings or masonry fixings, allowing you to select the appropriate option for your installation surface.
Shop: Set of 6 × 150 × 150mm Galvanised Bolt-Down Base Plates with 24 Fixings
Option 3: Traditional Timber Post Bases
Another option is a traditional timber post base.
These are particularly attractive where you want the fixing around the bottom of the gazebo post to blend naturally with the rest of the timber structure rather than having a galvanised steel support visible around the base.
The timber base creates a broader fixing point around the bottom of the gazebo post while maintaining a traditional wooden appearance.
Why Choose a Timber Post Base?
A timber post base may be worth considering when:
- You prefer a traditional timber appearance
- You don't want a galvanised support visible around the bottom of the post
- You're installing onto a suitable prepared supporting surface
- You want the post base to visually complement the gazebo
- For a traditional wooden gazebo, this can create a particularly neat finished appearance.
The Supporting Surface Still Matters
Changing the style of post base doesn't remove the need for an appropriate supporting surface.
The post base and its fixings ultimately transfer loads from the gazebo into the structure or foundation underneath.
The supporting surface and fixings therefore need to be suitable for the gazebo and installation conditions.
A decorative paving slab, for example, shouldn't automatically be assumed to provide a suitable structural anchor simply because a fixing can physically be drilled through it.
Timbakit Wooden Post Base Fixing Kit
For our gazebos using 150 × 150mm posts, Timbakit offers a traditional pressure-treated timber post base fixing kit.
This provides an alternative to galvanised bolt-down supports where a more traditional timber appearance is preferred.
Shop: Set of 6 Tanalised Wooden Post Base Fixing Kits to Suit 150 × 150mm Posts
Which Gazebo Anchoring Method Should I Choose?
The most suitable method will largely depend on the surface you're starting with.
Installing directly onto soil or grass?
Creating suitable concrete foundations and setting the gazebo posts into them can provide a permanent installation without requiring a complete concrete slab.
Installing onto a concrete surface?
Galvanised bolt-down base plates with suitable masonry fixings can provide a convenient way of mechanically anchoring your gazebo posts to an appropriate structural concrete base.
Installing onto a structural timber surface?
Galvanised bolt-down base plates can also be used with appropriate timber fixings.
Make sure the fixings connect into suitable structural timber rather than relying solely on decorative decking boards.
Prefer a traditional timber appearance?
Traditional timber post bases provide another option where the supporting surface is suitable and you'd prefer the base fixing to visually complement the wooden structure.
There isn't one fixing method that's automatically best for every gazebo.
The gazebo, post fixing and supporting structure should be considered together as one installation.
Can You Anchor a Wooden Gazebo to Decking?
Yes, a gazebo can potentially be installed onto a suitable timber deck, and galvanised bolt-down base plates with timber fixings can be used for this type of installation.
However, what's underneath the decking boards is important.
Simply securing a substantial gazebo into the decking boards alone shouldn't automatically be considered an adequate structural fixing.
The loads from the gazebo should be transferred into appropriate structural timber beneath the deck, such as suitably positioned joists, beams or additional supporting members.
This means the deck construction and proposed gazebo post positions should ideally be considered together.
Should Gazebo Posts Be Concreted into the Ground or Bolted Down?
Both methods can be appropriate.
If you're starting with an area of soil or grass without an existing supporting structure, creating concrete foundations for the posts can provide a straightforward permanent installation.
If you already have a suitable concrete or structural timber surface, bolt-down post supports allow you to mechanically secure the gazebo without burying the posts.
The existing site will often determine which approach makes the most sense.
Can I Install a Wooden Gazebo Without Concrete?
Yes, depending on the supporting structure.
If you have a suitable structural timber surface, for example, galvanised bolt-down base plates with appropriate timber fixings may provide an alternative installation method.
Likewise, if a suitable structural foundation already exists, there may be no reason to create additional concrete foundations specifically for the gazebo.
What matters is whether the supporting structure and fixing method are appropriate for the loads created by the gazebo.
Anchoring a Timbakit Wooden Gazebo
Timbakit wooden gazebos use substantial 150 × 150mm pressure-treated timber posts, and there are several ways these can be anchored depending upon your installation.
For installations onto suitable concrete or structural timber surfaces, we offer 150 × 150mm galvanised bolt-down base plates, available with either masonry or timber fixings.
For customers who prefer a more traditional appearance, we also offer tanalised wooden post base fixing kits designed to suit 150 × 150mm posts.
Alternatively, where the gazebo is being installed directly onto an area of soil or grass, suitable concrete foundations can be created for the gazebo posts.
Whichever method you choose, spend time getting the foundations and post positions right before assembling the main gazebo frame.
Accurate setting out at the beginning of the project can make the rest of the installation considerably easier.
Frequently Asked Questions
What is the best way to anchor a wooden gazebo to the ground?
There isn't one method suitable for every installation. Gazebo posts can be set into suitable concrete foundations or mechanically anchored to appropriate concrete or structural timber surfaces using post supports. The best solution depends on the gazebo, supporting surface, ground conditions and site exposure.
How do you secure a wooden pergola to the ground?
Common methods include setting the posts into concrete foundations or using bolt-down post supports fixed to an appropriate concrete or structural timber surface.
Can gazebo posts be concreted directly into the ground?
Timber posts can be installed into appropriately designed concrete foundations where the timber specification and treatment are suitable for the intended application. Foundation requirements will depend on the structure and ground conditions.
Can I bolt a gazebo onto concrete?
Yes. Galvanised bolt-down base plates with suitable masonry fixings can be used to secure gazebo posts to an appropriate structural concrete base.
Can I bolt a gazebo onto timber?
Yes. Galvanised bolt-down base plates or traditional timber post bases can be secured using suitable timber fixings where an appropriate structural timber supporting surface is available.
Can gazebo base plates be fixed to paving slabs?
You shouldn't assume an individual paving slab provides a suitable structural foundation simply because it can be drilled. The construction underneath the paving and the loads created by the gazebo need to be considered.
Can I fix a gazebo to decking?
Potentially. Galvanised base plates can be used with timber fixings, but the gazebo loads should be transferred into suitable structural timber beneath the decking rather than relying solely on the decking boards themselves.
Need More Help Installing Your Wooden Gazebo?
For installations onto concrete, take a look at our detailed illustrated guide:
How to Fix a Wooden Gazebo or Pergola to a Concrete Deck
Or explore our gazebo accessories for compatible galvanised and traditional timber fixing solutions for Timbakit 150 × 150mm gazebo posts.
